Varon Vehicles V210

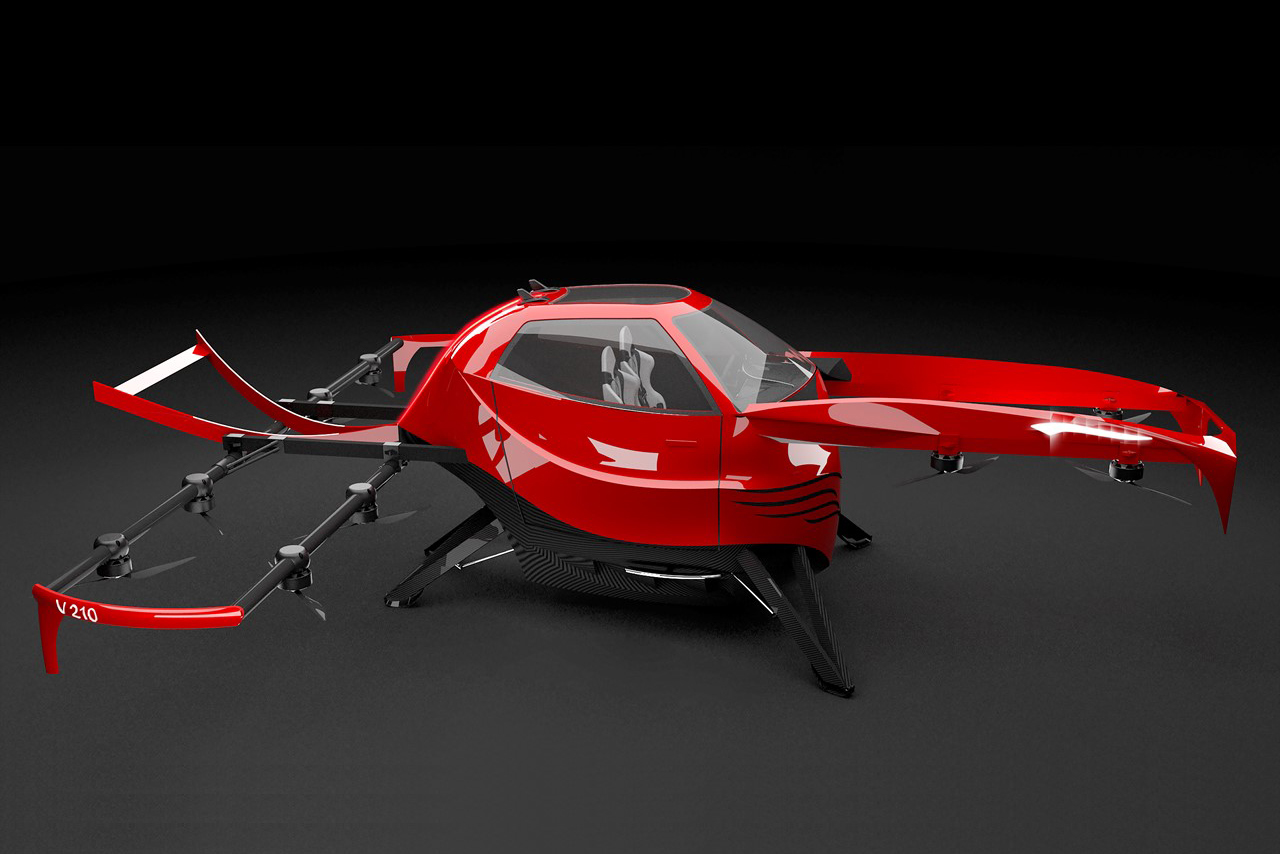

/Varon V210/Varon-Vehicles-V210-technology-validation-aircraft.jpg "Varon Vehicles V210")
Varon V210
Varon Vehicles Corporation
Miami, Florida, USA
www.varonvehicles.com
Twenty years ago, Felipe Varon conceived the idea of developing a new way to fly that was simpler, cheaper and worked well for Urban Air Mobility (UAM). Back then in 2000, electric drones were starting to be made and Varon imagined that these drones could be scaled up for urban passenger transportation or the flying cars of the future. The Varon Vehicles Corporation was founded in 2016 by Varon, to make his dream happen.
The V200 and V210 eVTOL aircraft is the work Felipe Varon who is a graduate of MIT Professional Education’s Professional Certificate Program in Innovation and Technology. The company is not developing air vehicles; the V200 and V210 are eVTOL conceptual designs to acquire the know how on eVTOL performance, vertiport requirements, airspace integration architecture and human machine interface for the operators. The company is working with eVTOL manufacturing companies to provide them with their eVTOL fleets.
The company’s goal is to use the technology to have a positive social impact which includes offering low cost on-demand and pay-per-flight air transportation in road congested urban areas and developing countries and provide clean air transportation. Air safety is the number one priority for the company.
Varon Vehicles is creating UAM ecosystems which includes developing confined and controlled transportation systems including vertiports, which connect to each other with virtual flying lanes for UAM air aircraft, without the need for Air Traffic Control to be involved.
Varon's Key Characteristics for their UAM Ecosystem:
- Provide low altitude routes for UAM aircraft
- These air routes will be permanent routes
- Air Traffic Control will not be needed
- Provide a traffic management system
- Will take into account local terrain, buildings, obstacles and weather conditions to assure safe flight
- No flight plans will be needed
- All aircraft to have pilots
- Will work with regulators and the public, for government and public acceptance
The Varon V210 is a conceptual design which will help the company to validate the technology they will be using to make a safe airlanes and vertiports for UAM. The V210 holds two people, one pilot and one passenger, in an electric vertical takeoff and landing (eVTOL) aircraft, has 12 propellers, 12 electric motors, large front, side and top windows, two doors and four landing struts. The company has flown uncrewed drone prototypes to validate their ability to provide safe UAM routes for eVTOL aircraft.
The vehicles construction, controls and vertiport-to-vertiport flight parameters are predicated on the concept of "Urban Friendliness". Company trained and certified drivers will have general control of the craft using simplified controls more similar to a car than an aircraft. An on-board, off-line (hack free), computer will keep the V200 within a safe range of flight dynamics and control vertical take-offs and landings.
The company plans to build the vertiports along with other companies in the UAM industry. The company estimates the maximum distance between vertiports will be six to eight miles in distance, during the beginning of their project. There will be vertiports with a much shorter distance between them, as well.
Varon envisions developing and employing a centralized Traffic Management System (TMS) confining the ‘driver’ and craft within a narrow path and very low altitude. Varon's Traffic Management System will assign all of Varon Vehicles' aircraft into virtual lanes and keep them separated at safe distances, as well as away from all other air traffic. If the occupant’s actions require a full computer override the V200 will detect and instigate an auto-land program.
The Varon Vehicles Corporation has done a soft-launch for the V200 prototype in Varon’s native Colombia. They have been in conversation with the aeronautical regulatory authorities in several European countries and plan to approach the U.S. Federal Aviation Administration for a possible test site in Texas. The company has a defined strategic plan, including a three year research and development phase which has been completed.
The next phase is the construction of vertiports with a fleet of eVTOL aircraft for public cargo use first, then passenger use. The company has stated they have passed the pre-seed phase and are now entering the Construction Phase which is set to last some four to five years, building the first vertiport to be built in Colombia. During this phase the remaining business units will also be completed which includes establishing aircraft fleets and airspace integration work with authorities. The plan to have their system up and running for public urban passenger air transportation in seven years.

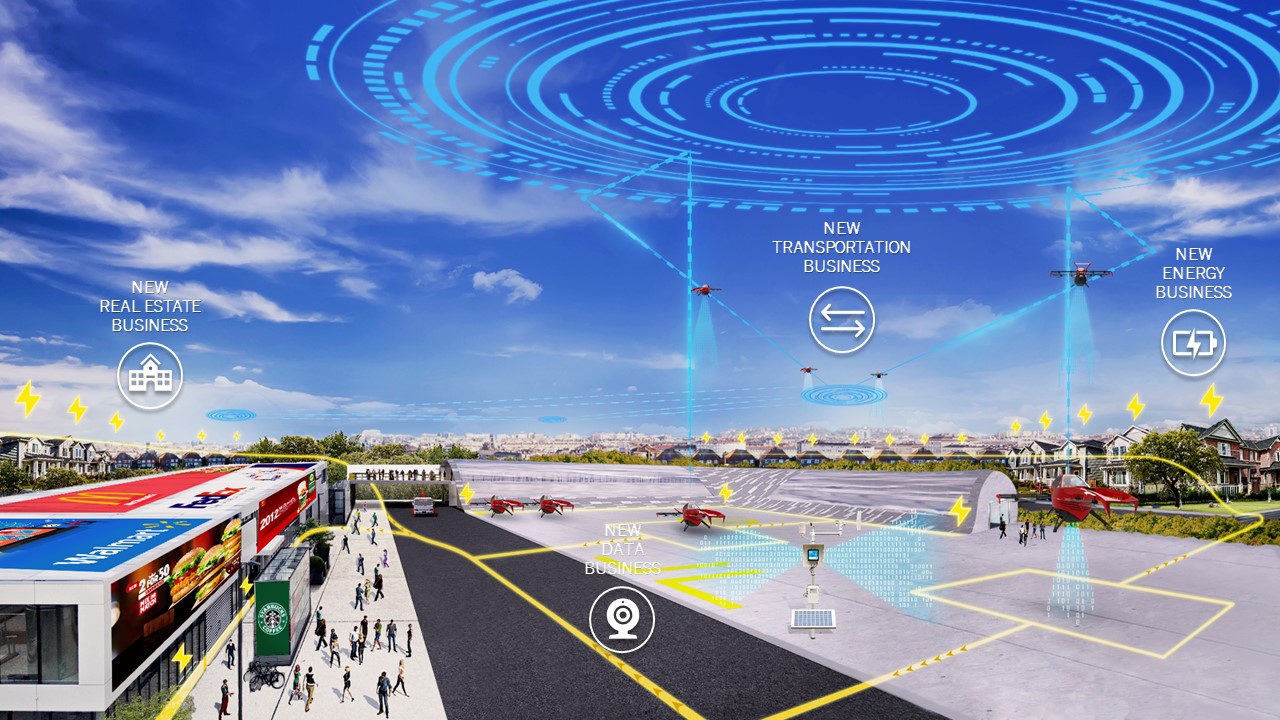

/Varon V210/varon-vehicles-vertiport.jpg "Varon Vehicles Vertiport")
Specifications:
- Aircraft type: eVTOL concept aircraft to use to collect data needed to build vertiports, make airlanes and determine how to safely fly multiple eVTOL aircraft in an urban environment
- Capacity: 2 people (1 pilot and 1 passenger)
- Propellers: 12
- Electric Motors: 12
- Windows: Panoramic windows and sunroof providing spectacular views.
- Doors: 2
- Wings: None
- Landing gear: Strut-leg type landing gear
- Safety Features: Distributed Electric Propulsion (DEP), provides safety through redundancy for its passengers and/or cargo. DEP means having multiple propellers and motors on the aircraft so if one or more motors or propellers fail, the other working motors and propellers can safely land the aircraft.
Company Insights
Resources:
- Search eVTOL News posts
- Varon Vehicles website
- Varon Vehicles Facebook
- Varon Vehicles YouTube
- Varon Vehicles Instagram
- Varon Vehicles LinkedIn
- Article: A Mighty Vision, Industry Era Review, (no date)
- Article: Smart City Expo World Congress 2017, K-Lagan, Nov. 30, 2017
- Article: One man’s flying car dream is taking off, thanks to MIT, MIT Professional Education, Sept. 26, 2018
- Article: Flying Cars Could Provide Deliveries to Underserved Communities, Engineering, Oct. 4, 2018
- Video: V200 Flying Cars, Varon Vehicles, Feb. 20, 2019
- Article: Could Urban Air Mobility Enable Growth In Latin American Cities?, Aviation Week, June 9, 2020
