Flyt Aerospace Supply Drone (concept design)

Supply Drone (concept design)
Flyt Aerospace
Cupertino, California, USA
www.flytaerospace.com

Flyt Aerospace was founded in June 2013 in Cupertino, California, USA by Ansel Misfeldt. In ninth grade, Misfeldt dreamed he could fly to school each morning so he could sleep in longer in the mornings. He studied at the University of Southern California (Los Angeles, California, USA) obtaining a business degree in 2010 while taking courses in mechanical engineering and in material science at the same time. He also studied some aerospace engineering on his own time while at the university. All the while, he continued his dream of creating a small one person flying machine and had made hundreds of drawings and sketches of aircraft up to 2013. The company is currently seeking investors. (Image credits: Ansel Misfeldt)

Misfeldt quit his job in early 2013, started his own aerospace company and has focused on building his own personal flying eVTOL aircraft and small drones since then. Misfeldt reveals that creating a personal flying machine is a very difficult and a complex problem. He has designed, manufactured and flown at least nine different prototypes. Two of his early prototypes were vertical takeoff and landing (VTOL) multicopter aircraft powered by gasoline engines using mechanical gears, shafts and pulleys to transfer the power to the propellers. The remainder of his prototypes are electric VTOL (or eVTOL) multicopter aircraft made with the ultimate goal of creating a personal aircraft for advanced air mobility (AAM).

Flyt Aerospace is now in the business of selling a small eVTOL drone called the Defender X4E with a maximum payload of 5 lb (2.27 kg) with over one hour endurance that are sold to government entities and the military. The Defender X4E has been designed to allow it to have many options so the drone can be adapted to the customer's requirements. Recently, Misfledt has partnered with the Land Rotor, based in Florida, USA and is creating passenger eVTOL aircraft for Land Rotor, for advanced air mobility.

Supply Drone heavy-lift eVTOL air cargo concept design multicopter swarm drone

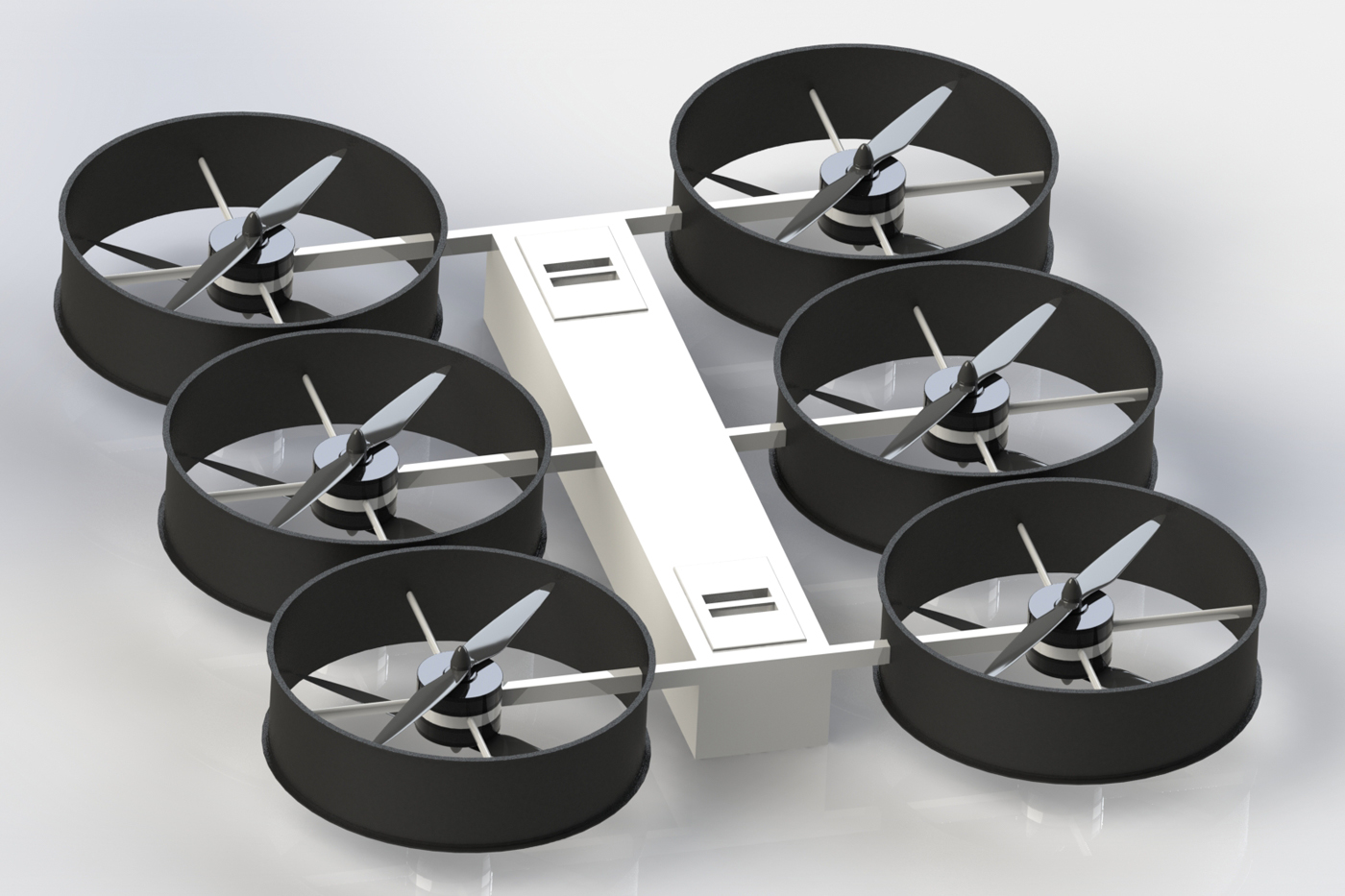

The Supply Drone is a heavy-lift eVTOL air cargo concept design multicopter swarm drone made specifically for the military. The aircraft is remotely piloted or flown autonomously. The air cargo drone has been made to be quiet, have a low profile and has been made for low altitude flying to keep air cargo supplies out of harms way from an enemy force.

The aircraft can be flown in a swarm mode. This means the drones can be connected and flown in tandem allowing the drones to carry a much heavier payload. In addition, if the swam feature was implemented on an air cargo mission and if one drone gets shot down, the other drones will continue to fly to their destination.

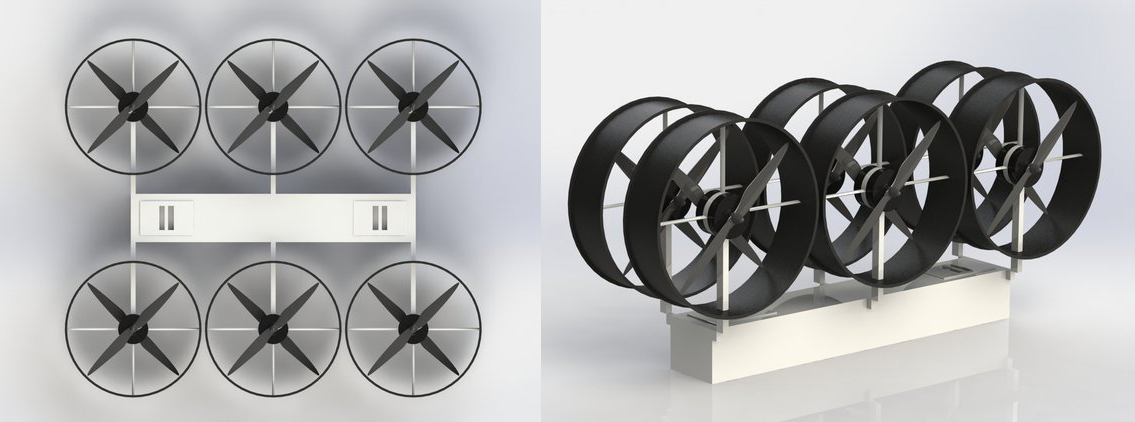

The aircraft has 12 propellers, 12 electric motors and is powered by battery packs. There are six propeller ducts with two stacked propellers inside of each duct. The ducted propellers can move to a vertical position to keep the aircraft as small as possible while in storage or when transporting the multicopter by truck, rail, ship or by aircraft. The drone can be charged in the field using solar panels. The multicopter is made from carbon fiber composite to provide the fuselage with a high-strength and low weight ratio.

Current Flyt Aerospace design and manufacturing capabilities
Flyt Aerospace is now in the business of selling a small eVTOL drone called the Defender X4E with a maximum payload of 5 lb (2.27 kg) with over one hour endurance that are sold to government entities and the military. The Defender X4E has been designed to allow it to have many options so the drone can be adapted to the customer's requirements. Recently, Misfledt has partnered with the Land Rotor, based in Florida, USA and is creating passenger eVTOL aircraft for Land Rotor, for advanced air mobility.

Specifications:

• Aircraft type: Heavy-lift eVTOL air cargo military concept design multicopter drone
• Piloting: Remote or autonomous
• Cruise speed: Unknown
• Cruise altitude: Low altitude flying
• Maximum payload: 300 lb (136 kg)
• Propellers: 12 ducted propellers
• Electric motors: 12 electric motors
• Power source: Battery packs
• Fuselage: Carbon fiber composite
• Landing gear: Unknown
• Safety features: Distributed Electric Propulsion (DEP), provides safety through redundancy for its passengers and/or cargo. DEP means having multiple propellers (or ducted fans) and motors on the aircraft so if one or more propellers (ducted fans) or motors fail, the other working propellers (or ducted fans) and motors can safely land the aircraft. There are also redundancies of critical components in the sub-systems of the aircraft.

Related Aircraft:

• Flyt Aerospace FlytCycle 16 (defunct)
• Flyt Aerospace FlytCycle V1 (defunct)
• Flyt Aerospace FlytCycle V1.5 (defunct)
• Flyt Aerospace FlytCycle V2 (defunct)
• Flyt Aerospace FlytCycle V3 (concept design)
• Flyt Aerospace Hoverboard (defunct)
• Flyt Aerospace Liberator (defunct)
• Flyt Aerospace Mark III (defunct)
• Flyt Aerospace Mark IV (defunct)
• Flyt Aerospace Medivac Drone (concept design)
• Flyt Aerospace Red Hummingbird (concept design)
• Flyt Aerospace Troop Transporter FT-2 (concept design)
• Land Rotor AAM Sportster (concept design)
• Land Rotor AAM Sportster (prototype)
