Flyt Aerospace FlytCycle 16 (defunct)

FlytCycle 16 (defunct)
Flyt Aerospace
Cupertino, California, USA
www.flytaerospace.com

Flyt Aerospace was founded in June 2013 in Cupertino, California, USA by Ansel Misfeldt. In ninth grade, Misfeldt dreamed he could fly to school each morning so he could sleep in longer in the mornings. He studied at the University of Southern California (Los Angeles, California, USA) obtaining a business degree in 2010 while taking courses in mechanical engineering and in material science at the same time. He also studied some aerospace engineering on his own time while at the university. All the while, he continued his dream of creating a small one person flying machine and had made hundreds of drawings and sketches of aircraft up to 2013. The company is currently seeking investors. (Image credits: Ansel Misfeldt)

Misfeldt quit his job in early 2013, started his own aerospace company and has focused on building his own personal flying eVTOL aircraft and small drones since then. Misfeldt reveals that creating a personal flying machine is a very difficult and a complex problem. He has designed, manufactured and flown at least nine different prototypes. Two of his early prototypes were vertical takeoff and landing (VTOL) multicopter aircraft powered by gasoline engines using mechanical gears, shafts and pulleys to transfer the power to the propellers. The remainder of his prototypes are electric VTOL (or eVTOL) multicopter aircraft made with the ultimate goal of creating a personal aircraft for advanced air mobility (AAM).

Flyt Aerospace is now in the business of selling a small eVTOL drone called the Defender X4E with a maximum payload of 5 lb (2.27 kg) with over one hour endurance that are sold to government entities and the military. The Defender X4E has been designed to allow it to have many options so the drone can be adapted to the customer's requirements. Recently, Misfledt has partnered with the Land Rotor, based in Florida, USA and is creating passenger eVTOL aircraft for Land Rotor, for advanced air mobility.

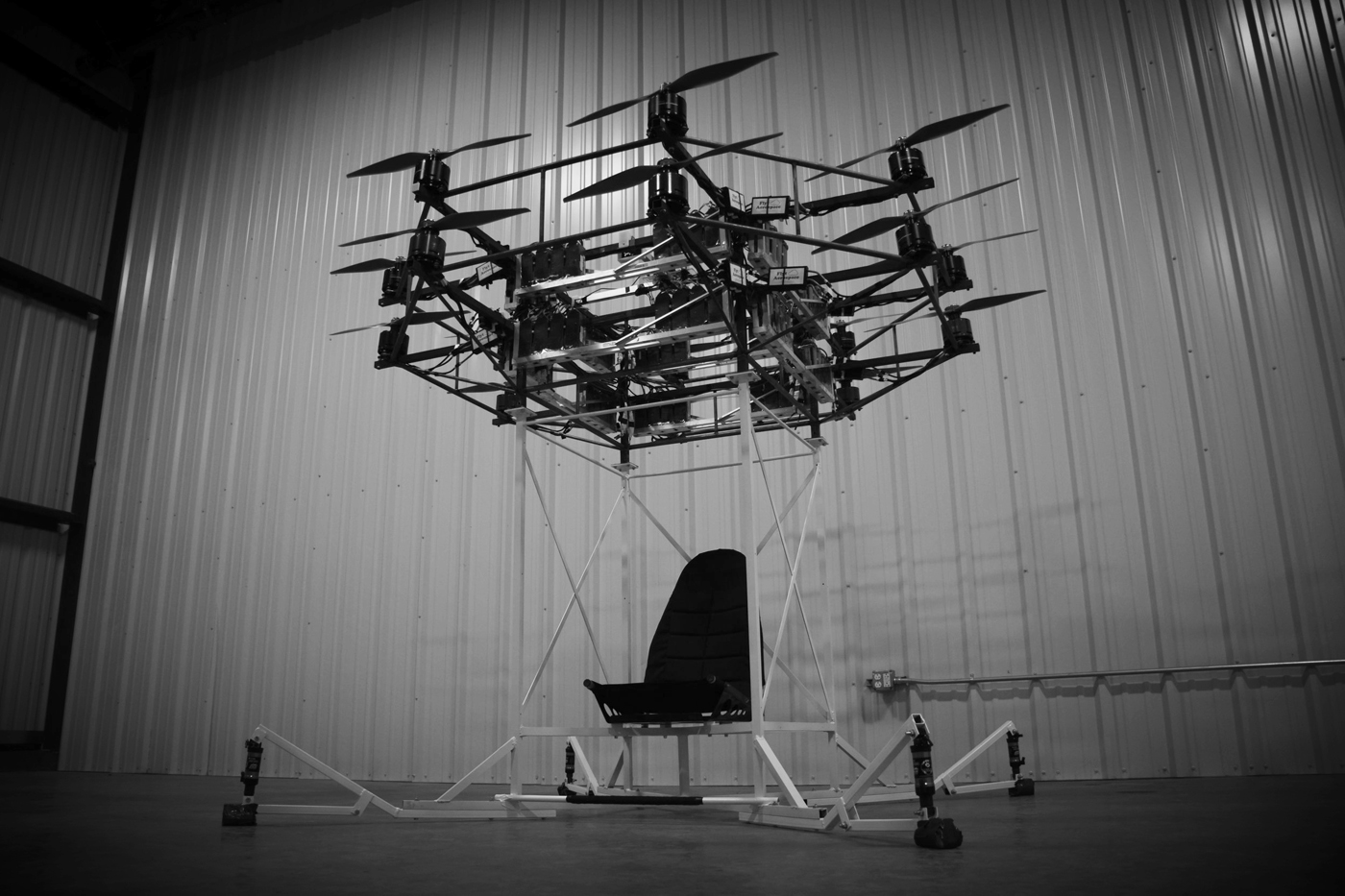

FlytCycle 16 one passenger eVTOL defunct prototype multicopter aircraft
The FlytCycle 16 is a one passenger eVTOL defunct prototype multicopter aircraft. The aircraft was originally intended for personal use for advanced air mobility (AAM) but never made it to a production aircraft. The aircraft is a crewed aircraft using one pilot and can be flown remotely. The aircraft has an open cockpit and the entire propeller assembly is directly above the pilot's seat. It is recommended that the pilot wears a pilot's helmet when flying this aircraft. The aircraft made 90 uncrewed flights and made 28 crewed test flights.

While there is a hypothetical cruise speed for the multicopter, it was never flown at the actual cruise speed. This is because as a prototype aircraft, it was only flown close to the ground for testing purposes. The aircraft was never intended to be flown at what would be considered its cruise speed. The flight time of the aircraft is 10 minutes.

The aircraft has 16 propellers, has 16 electric motors and is powered by 96 batteries. The empty weight of the aircraft without batteries is 189 lb (86 kg), the empty weight with batteries is 317 lb (144 kg), the maximum payload is 300 lb (136 kg) and the maximum takeoff weight is 617 lb (280 kg). The weight of the batteries is 128 lb (58 kg). The fuselage is made from 4130 steel and has fixed skid landing gear.

Current Flyt Aerospace design and manufacturing capabilities
Flyt Aerospace is now in the business of selling a small eVTOL drone called the Defender X4E with a maximum payload of 5 lb (2.27 kg) with over one hour endurance that are sold to government entities and the military. The Defender X4E has been designed to allow it to have many options so the drone can be adapted to the customer's requirements. Recently, Misfledt has partnered with the Land Rotor, based in Florida, USA and is creating passenger eVTOL aircraft for Land Rotor, for advanced air mobility.

Specifications:

• Aircraft type: eVTOL passenger multicopter aircraft
• Piloting: 1 pilot
• Cruise speed: While there is a hypothetical cruise speed for the multicopter it was never flown at the actual cruise speed because this is a prototype and was only flown close to the ground for testing purposes. The aircraft was never intended to be flown at what would be considered its cruise speed.
• Flight time: 10 minutes
• Empty weight: 189 lb (86 kg)
• Empty weight with batteries: 317 lb (144 kg)
• Maximum payload: 300 lb (136 kg)
• Maximum takeoff weight: 617 lb (280 kg)
• Propellers: 16 propellers
• Electric motors: 16 electric motors
• Power source: 96 batteries
• Battery weight: 128 lb (58 kg)
• Fuselage: 4130 steel
• Window: Open cockpit
• Landing gear: Fixed skid landing gear
• Safety features: Distributed Electric Propulsion (DEP), provides safety through redundancy for its passengers and/or cargo. DEP means having multiple propellers (or ducted fans) and motors on the aircraft so if one or more propellers (ducted fans) or motors fail, the other working propellers (or ducted fans) and motors can safely land the aircraft. There are also redundancies of critical components in the sub-systems of the aircraft.

Related Aircraft:

• Flyt Aerospace FlytCycle V1 (defunct)
• Flyt Aerospace FlytCycle V1.5 (defunct)
• Flyt Aerospace FlytCycle V2 (defunct)
• Flyt Aerospace FlytCycle V3 (concept design)
• Flyt Aerospace Hoverboard (defunct)
• Flyt Aerospace Liberator (defunct)
• Flyt Aerospace Mark III (defunct)
• Flyt Aerospace Mark IV (defunct)
• Flyt Aerospace Medivac Drone (concept design)
• Flyt Aerospace Red Hummingbird (concept design)
• Flyt Aerospace Supply Drone (concept design)
• Flyt Aerospace Troop Transporter FT-2 (concept design)
• Land Rotor AAM Sportster (concept design)
• Land Rotor AAM Sportster (prototype)
