PAV-X
PAV-X
PAV-X
London, United Kingdom
www.pav-x.com (no longer online)

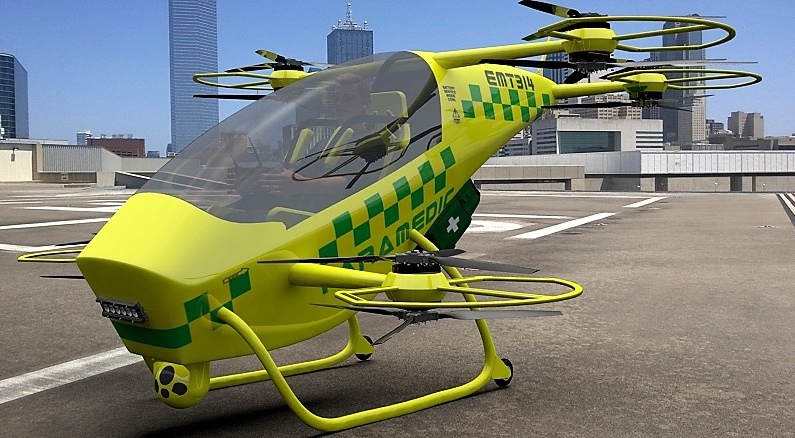

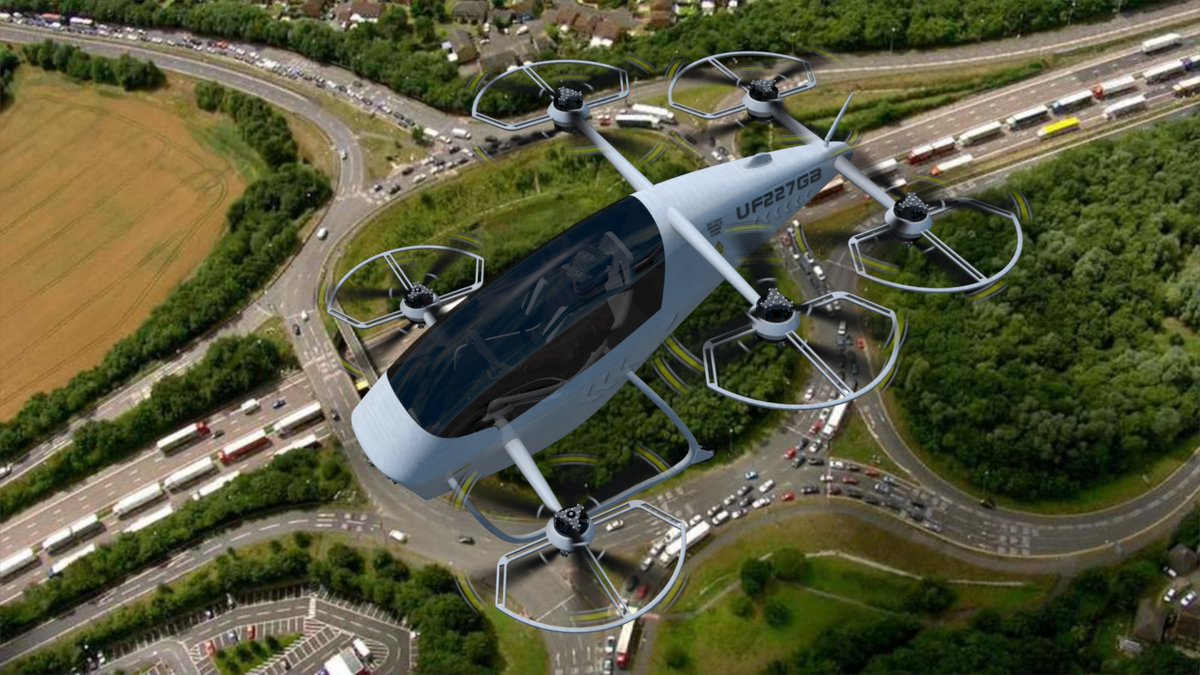

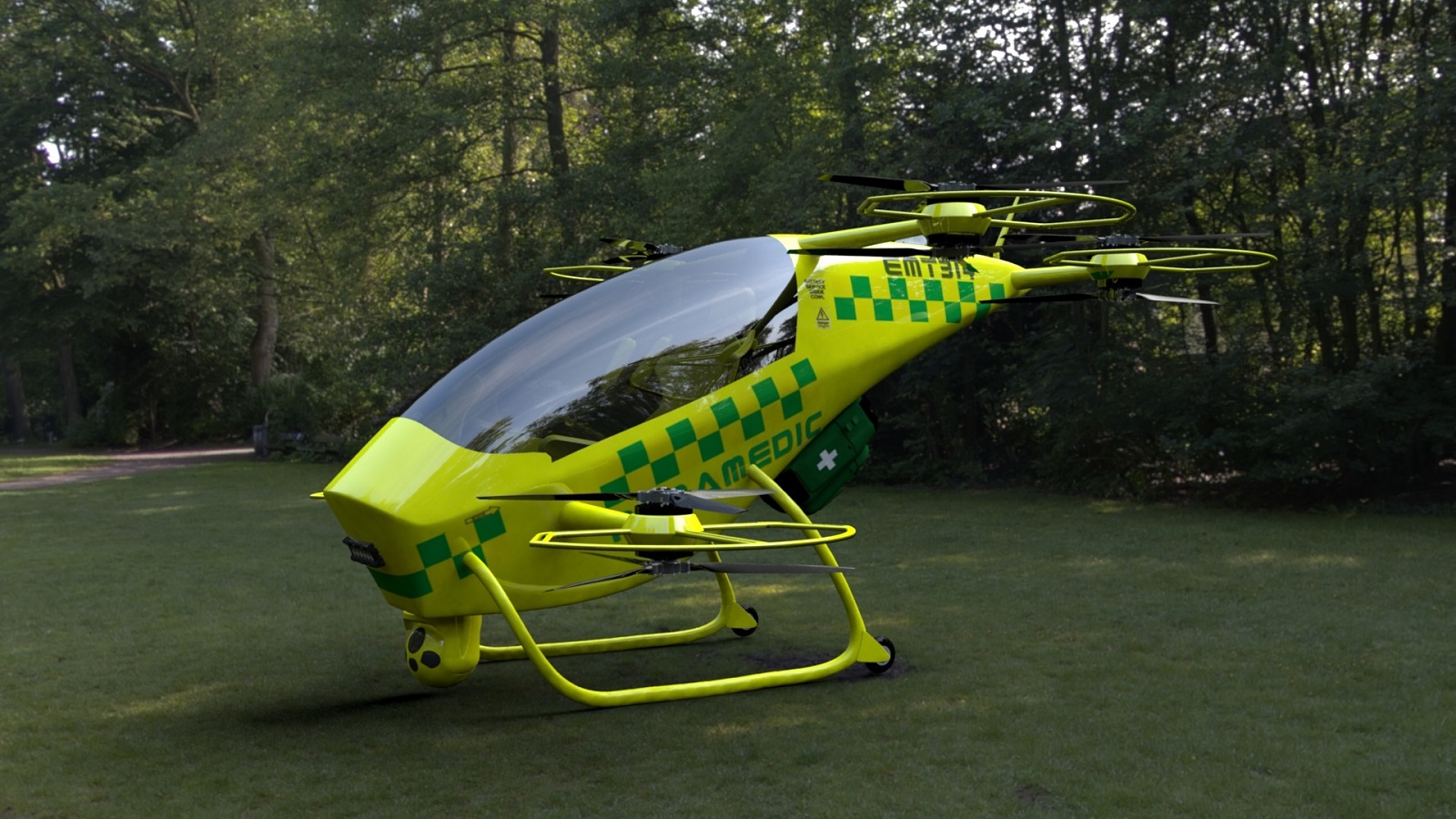

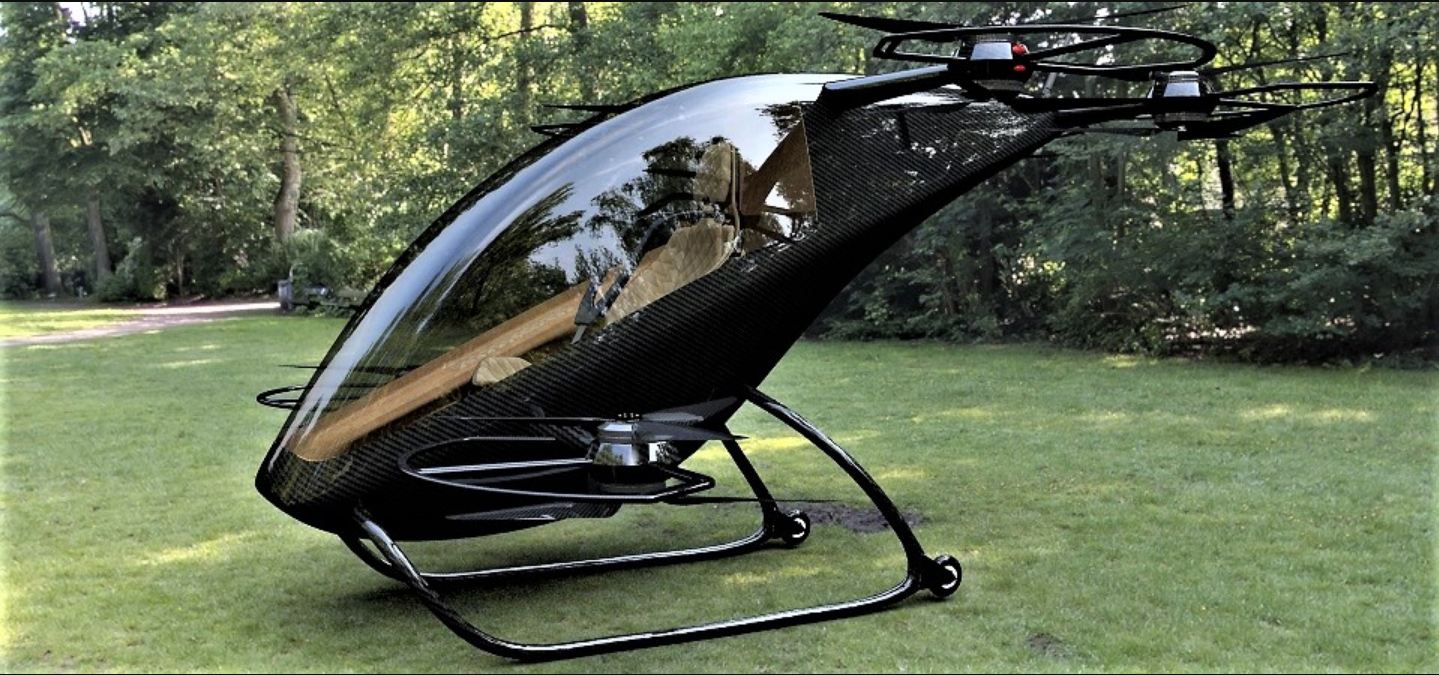

The PAV-X Company (PAV = Personal Air Vehicle) was a small start-up which created several concept eVTOL aircraft. The PAV-X eVTOL (electric Vertical Take-Off and Landing) is shown here.

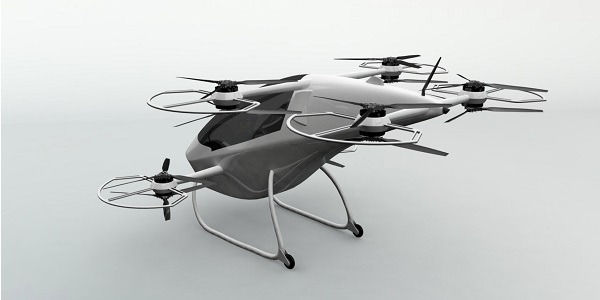

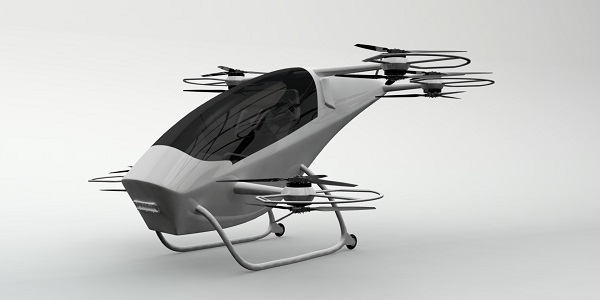

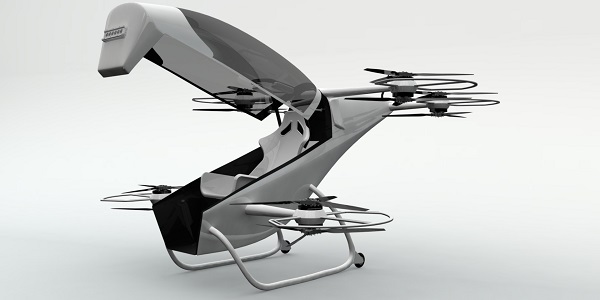

The aircraft is a very sleek design with six (6) sets of propellers, each set containing two (2) propellers, for a total of twelve (12) propellers. Each propeller can be seen to have three (3) props. The aircraft was to be either all electric or a hybrid-electric aircraft. One can see that cockpit canopy allows a wide field of view allowing the pilot/passenger to see forward, left, right and above.
The company closed September 2018 and a new company was established in October 2018, called Esprit Aeronautics Limited. The new company, it's eVTOL aircraft and information is located here. For more information on aircraft developed by PAV-X please see the PAV-X PAV-UL Ultralight aircraft page.
PAV-X characteristics (updated January 2018):
| Width | 310 cm | 10 ft |
| Height | 310 cm | 10 ft |
| Length | 180 cm | 6 ft |
| Dry weight | 168 kg | 370 ft |
| RTF weight | 280 kg | 617 lb |
| Maximum take-off weight | 380 kg | 838 |
| Passenger capacity | 1 | |
| Battery | 15 min | |
| Hybrid* | 75 min | |
| Flight computer | Triple redundant | |
| Standard equipment | BRS, EFIS, transponder | |
| Optional equipment | Floats, FLIR sensors, spotlight | |
Resources:
- Esprit Aeronautics Limited on "eVTOL News" website
- Esprit Aeronautics Limited (as of October 2018) took over the PAX Company and here is their website
