Tier 1 Engineering e-R44 3rd Generation

e-R44 3rd Generation
Tier 1 Engineering
Santa Ana, California, USA
www.tier1engineering.com

Founded in 2009 by Glen Dromgoole, Tier 1 Engineering is a provider of engineering and manufacturing services, specializing in the development of lightweight structures. The company offers engineering design, analysis, fabrication, material cutting, testing documentation, research and development and more, to the aerospace, energy, marine, medical and the consumer product sectors.

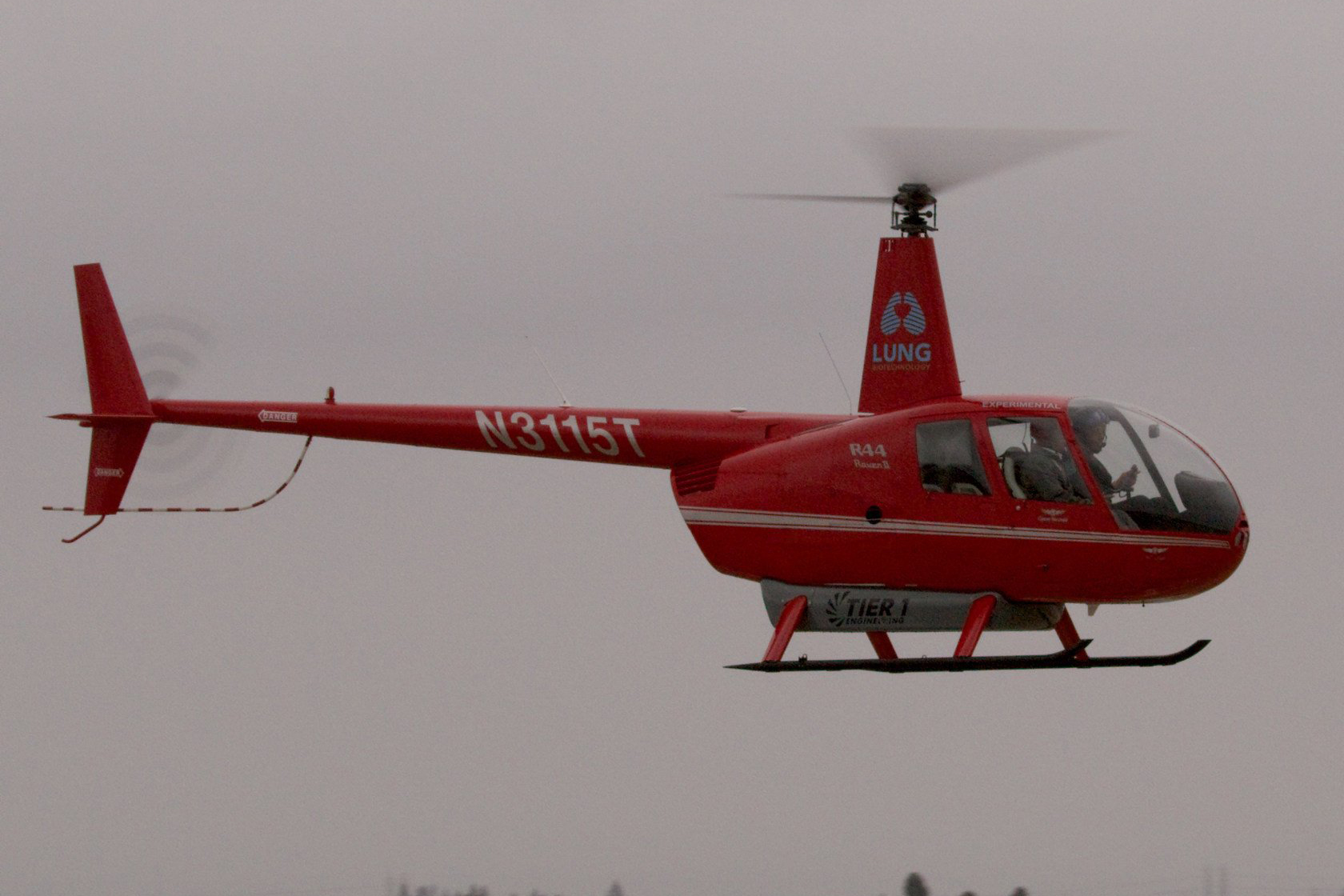

The e-R44 3rd Generation is a two passenger electric experimental helicopter (N3115T) using a modified Robinson Helicopter R44 for the aircraft. The e-R44 has one main rotorblade, one tail rotor, two electric motors, battery packs, control systems and has fixed skid landing gear. The major improvement to this 3rd model was changing to a high-tech and more powerful magniX magni250 electric motors.

On June 4, 2022 at 8:00 a.m., the e-R44 3rd Generation electric helicopter made a historic three minute flight at Los Alamitos Army Airfield (California, USA). The aircraft was flown by test pilot Ric Webb and co-pilot Dr. Martine Rothblatt, CEO of United Therapeutics, which is both the primary sponsor and launch customer for the battery-electric retrofit helicopter program.

“This historic flight of an all-electric helicopter with a certifiable electric engine was an important step towards obtaining aircraft certification,” said Glen Dromgoole, president of Tier 1 Engineering. “We are excited to expand the flight tests to greater distances and demonstrate safe reliable all-electric flight.”

The initial ground runs of the e-R44 3rd Generation helicopter began behind the Tier 1 Engineering offices in Santa Ana on Mar. 31, 2022 with Martine Rothblatt and Ric Webb performing system checks to validate the cooling system and engine controls of the magni250 electric motors.

Dromgoole said the company conducted more than 50 ground tests before the e-R44 3rd Generation helicopter was ready to make its first hover flight and perform traffic patterns at the airport. The tests included low and high-power runs with the aircraft anchored firmly to the ground.

Some of the tests simulated various engine fault scenarios and the pilot response. The magni250 has two motor segments which are powered by separate inverters. This means the helicopter can keep flying if one inverter or motor segment fails.

The next step in the program is to upgrade the engines to a more powerful magniX magni350 electric motor and its systems, and this will usher in the e-R44 4th Generation electric helicopter.

Tier 1 Engineering is developing the all-electric helicopter for Lung Biotechnology PBC. Lung Biotechnology PBC is pioneering techniques to address the acute national shortage of transplantable lungs and other organs. The company focuses on lung perfusion to develop new advanced technologies to preserve lungs for transplant and increase the availability of lung transplants for end-stage lung disease, including PAH.

Lung Biotechnology's work includes innovative methods that can stabilize and improve lungs that would otherwise be discarded. Xenotransplantation (the process of grafting or transplanting organs or tissues between members of different species) could potentially provide a limitless supply of organs. The company intends to acquire a fleet of electric helicopters and will use them to provide urgent hospital-to-hospital transportation for time-critical transplant operations.

Tier 1 Engineering is in discussions with the Federal Aviation Administration (FAA) aircraft certification office in Los Angeles to acquired a supplemental type certificate for the e-R44 program.

Unither Bioelectronics and Robinson Helicopter Partner on Hydrogen
Dr. Martine Rothblatt, founder and CEO of United Therapeutics (UT) in 1996, has been one of the visionary drivers of the electric vertical takeoff and landing (eVTOL) aircraft revolution since conceiving of a zero-emissions aerial transplant organ delivery system almost a decade ago.

Rothblatt recognized that UT’s efforts to extend the viability of human organs for transplant — as well as xenotransplantation, which uses the hearts and kidneys of genetically modified pigs in human transplantation and regenerative medicine — would significantly increase the supply of organs available for transplant over the next decade or two. And that this would require a dedicated organ delivery system that was larger than that in place today.

In 2015, UT supported the development of a battery-electric retrofit of the popular Robinson R44 with Tier 1 Engineering of Santa Ana, California. On Sept. 21, 2016, Ric Webb, CEO of Part 135-charter operator OC Helicopters, made history when he flew the first-generation e-R44 for five minutes on battery power alone at Los Alamitos Army Airfield (KSLI) in California.

On Oct. 29, 2022, Webb with Rothblatt as co-pilot flew the third-generation e-R44 on a record-setting cross-country flight from Jacqueline Cochran Airport (KTRM) to Palm Springs International Airport (KPSP) covering the 24-mile (39-km) route in a flight time of 20 minutes, with the battery cells at a 50% state of charge (SOC) on landing. “This was the first-ever electric-helicopter flight between two cities and between two airports,” said Rothblatt after landing in Palm Springs, adding that it demonstrated that “it is practical to deliver transplantable organs by electric helicopters from hospital to hospital.”

On Aug. 14, 2024, Robinson Helicopter Company (RHC) announced it had signed a collaborative agreement with Unither Bioelectronics to help accelerate the development and certification of hydrogen-powered versions of the popular R44 and R66 helicopter models. Rothblatt sees the R66, with a maximum takeoff weight of 2,700 lb (1,225 kg), as an ideal candidate for hydrogen-electric power, but most of the company’s research work in electric propulsion has, to date, utilized a 2,500-lb (1,135-kg) R44 Raven II.

Hydrogen Pivot
Rothblatt said that Unither’s pivot to hydrogen fuel cell development was already mapped out on the day the e-R44 made its cross-country flight to Palm Springs, adding that “when you’re doing technology development, it’s very wise to have multiple shots on goal, because it’s very hard to predict the exact course of any given technology’s development, because it depends on so many other streams of technology pouring in, not to mention regulatory factors as well.”

One of the mission requirements for an aircraft employed by the United Therapeutics Organ Delivery System is enough range to fly between organ manufacturing facilities and transplant hospitals, and Unither didn’t see battery chemistry evolving fast enough for an electric helicopter. However, “we realized that… all of the work that we’ve been doing on motor development… can be pushed to much greater ranges… if we shifted from batteries to hydrogen fuel cells.”

Next Steps
Rothblatt expects that Unither will start delivering manufactured organs by electric VTOL aircraft “before the end of the decade (2029)” and that will become “the predominant form of organ delivery in the next decade. It’s just been a dream scenario, really.”

Specifications:

• Aircraft type: Electric helicopter demonstrator
• Piloting: 1 pilot, 1 passenger
• Cruise speed: Unknown
• Range: Unknown
• Estimated flight time: Unknown
• Cruise altitude: Unknown
• Rotorblades: 1 main rotor blade, 1 tail rotor
• Electric Motors: 2 magniX magni250 electric motors
• Power source: Lithium polymer batteries
• Fuselage: Welded steel tubing and riveted aluminum sheet
• Windows: Panoramic helicopter windows in the cockpit
• Landing gear: Fixed skid helicopter landing gear
• Safety features: The helicopter can autorotate in case of power failure
