Electric Vertical HEMS: A New Era in Air Ambulance?

By Ian Frain
Vertiflite, March/April 2021

Volocopter teamed with Germany’s leading emergency helicopter service to study the feasibility of eVTOL rescues.

In Germany, there are two main providers of helicopter emergency medical service (HEMS): the DRF Luftrettung (“German Air Rescue” — originally Deutsche Rettungsflugwacht e.V.) and ADAC Luftrettung, run by the Allgemeiner Deutscher Automobil-Club e.V. (“General German Automobile Association”).

ADAC Luftrettung celebrated 50 years of operations in 2020, having already flown its one millionth HEMS mission the year before.

When German traffic deaths spiked in the late 1960s, doctors determined that many would have survived if they had received quick emergency attention. The all-important “Golden Hour” is where a victim of trauma has more chance of recovery when treatment is immediately applied during those 60 minutes.

After some experiments using a helicopter for emergency rescue in 1968, the first ADAC Luftrettung station, Christoph 1 in Munich, was opened two years later. The first aircraft was a single-engine Bell 206, but ADAC soon moved to multi-engine operations, beginning with the Messerschmitt-Bölkow-Blohm (MBB) Bo 105. Over the decades, ADAC has used a varied fleet, with the Bo 105, MD Helicopters MD 900/902 Explorer and briefly even the Mil Mi-2 Hoplite (after the unification of Germany in 1990).

ADAC has a major network of bases across the country with a fleet of around 50 helicopters, comprising predominantly twin-engine Airbus Helicopters H135 (EC135P2/P3) and H145 (EC145 and EC145T2/BK117D2), as well as some legacy MBB BK117C1 helicopters. Each aircraft is named “Christoph,” after the patron saint of travelers, St. Christopher. One mission this January involved a patient giving birth to a healthy baby boy onboard Christoph Europa 2 — an H135 (EC135P2) based in the town of Rheine in northwest Germany — en route to the hospital.

ADAC Luftrettung also operates a fixed-wing air ambulance service for repatriation and transportation of German nationals who have taken ill abroad.

In neighboring Austria, ADAC — in cooperation with its counterpart, Österreichische Automobil, Motorrad- und Touringclub (“Austrian Automobile, Motorcycle and Touring Association”), with its ÖAMTC Flugrettung (“Air Rescue”) — operates the Airbus Helicopters H135 (EC135T2) from Suben in Upper Austria. Its variety of missions range from response to trauma, accidents and incidents, inter-hospital transfers, blood transport and the urgent delivery of medicines to patients.

While ADAC Luftrettung and DRF Luftrettung are the largest commercial HEMS operators in the country, they are not the only ones. While they both operate light and medium twin-engine rotorcraft, a smaller helicopter is flown by a smaller HEMS operator in the rural region of Rostock, in the Mecklenberg-Vorpommern state on the north coast of the country. In 1995, the local ambulance service, Ambulanz Millich explored the idea of a helicopter emergency response to serve the remote community. A year later, in January 1996, local operator Heli-Flight from Reichelsheim provided a piston-powered Robinson Helicopter R44 Raven II to Ambulanz Millich. Now, for a quarter of a century, the small, yellow R44 Raven II is a welcome sight in the community, ferrying doctors and other medical personnel to those in need.

Federal & Military Assistance
The German government also plays a key role in saving lives by helicopter.

Since 1970, the Bundespolizei Flugdienst (“Federal Police Air Service”) Flugrettung also contribute to the HEMS framework in Germany, flying the orange-red Airbus Helicopters H135. The overall Bundespolizei Flugdienst fleet consists of four new Airbus Helicopters H215 Super Pumas, 19 legacy AS332L1 Super Pumas, 19 H155 (EC155B1) Dauphin 2 and 42 H135 (EC135) helicopters, plus nine smaller, single-engine H120 (EC120B) trainers.

The Bundespolizei Flugdienst’s primary role is airborne law enforcement and border patrol, with secondary search and rescue (SAR), medical evacuation (medevac) and HEMS missions. Both the Super Pumas and Dauphin 2s carry rescue hoists, medical equipment and stretchers, while the H135 fleet is divided between the dedicated blue-and-white-striped airborne law enforcement patrol and the orange-red HEMS aircraft. As with ADAC Luftrettung and DRF Luftrettung HEMS helicopters, it is not unusual to see the orange-red H135 across the border in Austria.

Last but not least, the Bundeswehr (“German Armed Forces”) Heeresflieger (“Army Aviation”) provides SAR and HEMS with the legacy single-engine Bell UH-1D Huey (manufactured under license by Dornier) and the newer Airbus Helicopters H145M LUH SAR (“Light Utility Helicopter Search and Rescue”). The H145M LUH SAR helicopters are gradually replacing the Bell UH-1Ds. These operate on the similar principle as the US Army medevac helicopters in regular, reserve and National Guard service under the Military Assistance to Safety and Traffic (MAST) program.

It should be noted that all of these organizations are capable of night-vision goggle (NVG) all-weather operations.

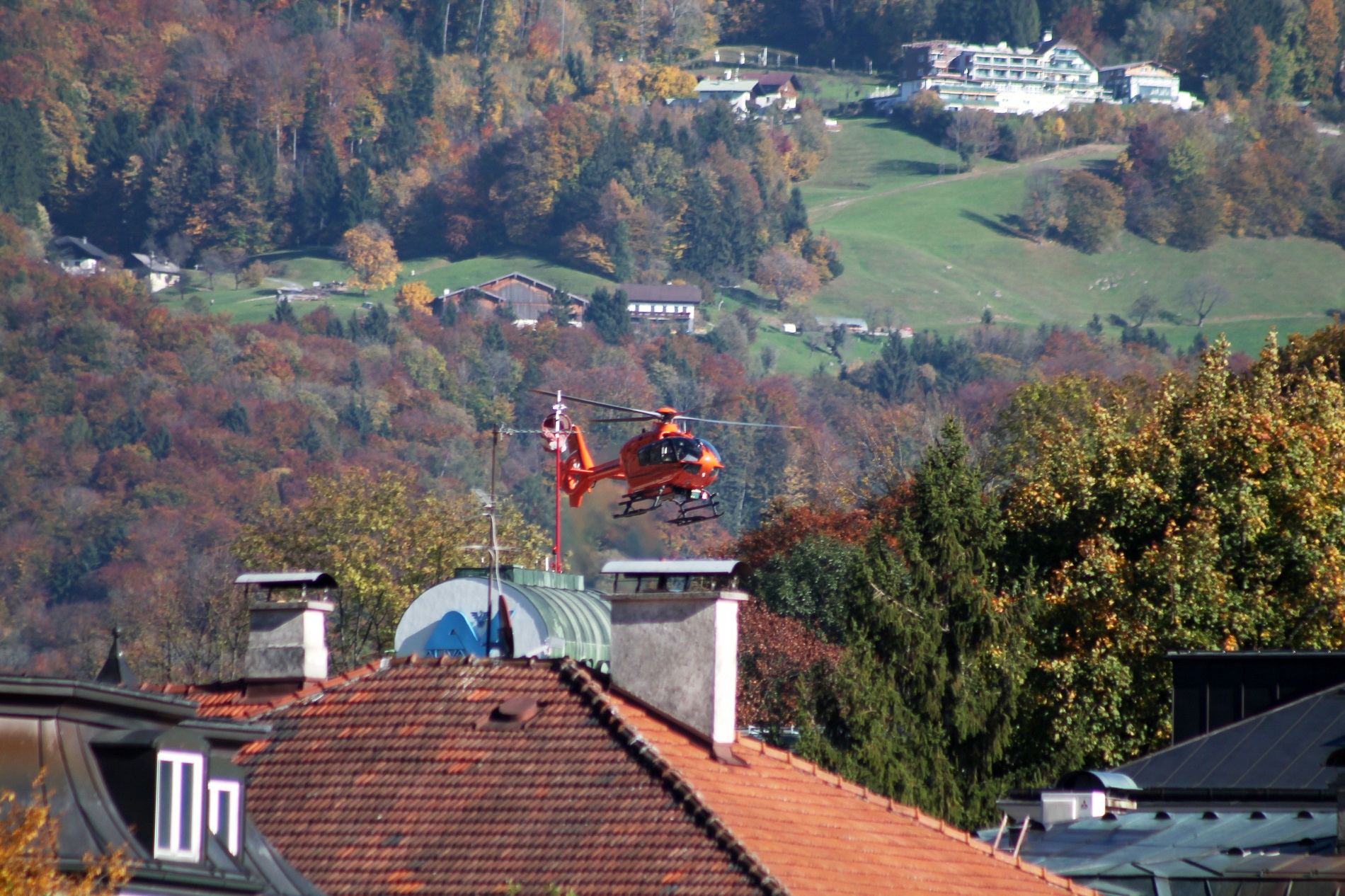

The Bundespolizei Flugdienst Flugrettung H135 arriving at UKH Hospital Salzburg in October 2020, bringing in a road traffic accident victim from across the border in Bavaria. (Author photo)

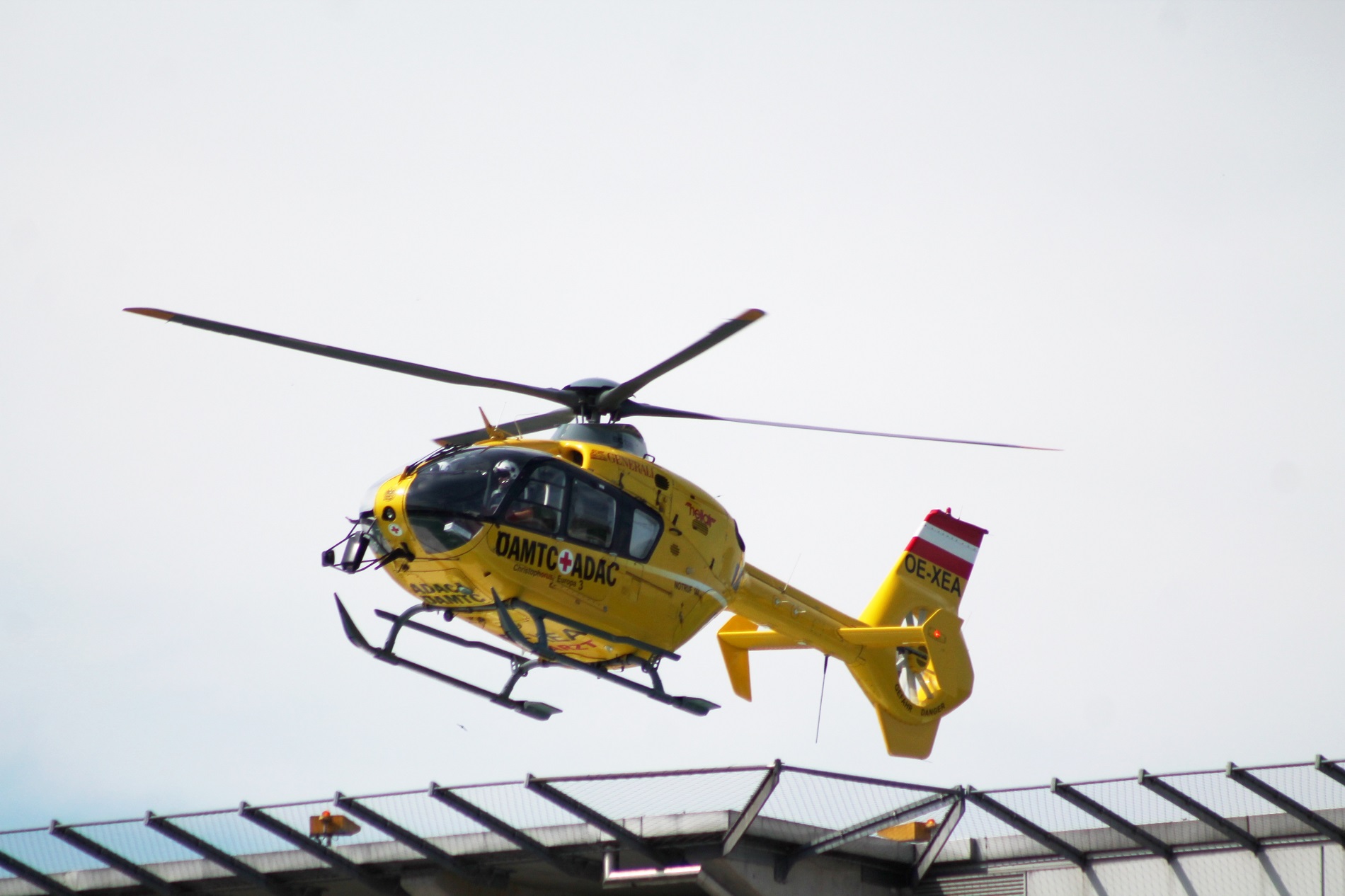

Joint ADAC-ÖAMTC Christophorus Europa 3 H135, based in Suben, departing Krankenhaus St. Josef Braunau in May 2018. (Author photo)

ADAC concept image of a VoloCity landing by the side of a rural road to deliver emergency aid. (© ADAC)

eVTOL Takes Off
As readers of Vertiflite well know, there has been a rise in the development of electric vertical takeoff and landing (eVTOL) of urban air mobility (UAM) in the last few years. What started off with a dozen or so companies five years ago has become hundreds of small to medium start-ups, plus the traditional aerospace original equipment manufacturers (OEM), involved in this venture, as catalogued in the VFS World eVTOL Aircraft Directory (www.eVTOL.news/aircraft). Some two dozen companies are now flying prototype eVTOL aircraft.

German company Volocopter, originally founded as e-volo GmbH (see the author’s article, “German Ultralight VTOL Innovations,” Vertiflite, Sept/Oct 2016), designed and built the world’s first passenger-carrying multicopter, the VC1, in 2011. Volocopter now has several products in its ecosystem nearing service: the VoloCity, VoloPort, VoloDrone and VololQ. The company was the first (and so far only) eVTOL start-up to have gained European Union Aviation Safety Agency (EASA) Design Organisation Approval (DOA) in December 2019.

The company’s latest all-electric aircraft is the VoloCity, a multicopter that carries two passengers and their personal luggage. It has a maximum gross weight of 1,985 lb (900 kg). First flight is expected soon.

Their previous two-seat models, the VC200 and 2X, had already flown more than 1,000 times by November 2019. The VC200 flew for the first time in 2013, with a manned flight in 2016 in Bruchsal, near Karlsruhe, Germany. It flew in Dubai in 2017 and (indoors) in Las Vegas in 2018.

The more refined 2X first flew in 2019. It flew public demonstrations in Stuttgart and Singapore later that year, and conducted a successful flight test of the 2X in controlled airspace at Helsinki International Airport (ICAO code EFHK) in Finland, integrating both conventional air traffic control (ATC) and unmanned traffic management (UTM).

The VoloDrone is a multicopter unmanned aerial system (UAS), which made its first tethered flight in October 2019. It has several applications ranging from agricultural missions such as seed sowing, forest management, etc., to logistics and heavy underslung load lifting. The VoloDrone can be utilized for the parapublic marketplace to provide surveillance or ferrying urgent supplies during times of disaster.

Volocopter is currently working with British firm Skyports to develop the vertical takeoff and landing infrastructure that will be used in large cities, which the company calls a VoloPort. Skyports designs and constructs vertiports for both cargo and passengers, while also specializing in drone deliveries. The VoloPort is available in three forms: on pontoons at the water’s edge, on a highway, or atop a skyscraper, similar to a rooftop helipad.

Volocopter is also developing the UAM software in conjunction with Lufthansa Industry Solutions, a subsidiary of the German national carrier Lufthansa. This is called VoloIQ and it provides real-time digital visualization of an UAM ecosystem, as well as serving as the nerve center for the air taxi service; it is critical to ensuring that the overall Volocopter UAM system works.

Volo Pair to the Rescue
In 2018, ADAC Luftrettung and Volocopter teamed up to conduct a feasibility study into the use of eVTOL vehicles in HEMS roles.

The ADAC Foundation — with the Institut für Notfallmedizin und Medizinmanagement (“Institute for Emergency Medicine and Medical Management”) at Ludwig Maximilian University in Munich — sponsored the research study. Computer simulations of various air medical missions were designed, covering two specific regions of Germany. More than 26,000 simulated multicopter operations were run, centered around the Ansbach area — with the eVTOL operating from bases at Dinkelsbühl — in Bavaria, and Idar-Oberstein in the Rhineland-Palatinate state to the west.

The Volocopter VC200 coming in for a landing in a simulated roadside assistance demonstration in 2019. (© ADAC / Volocopter)

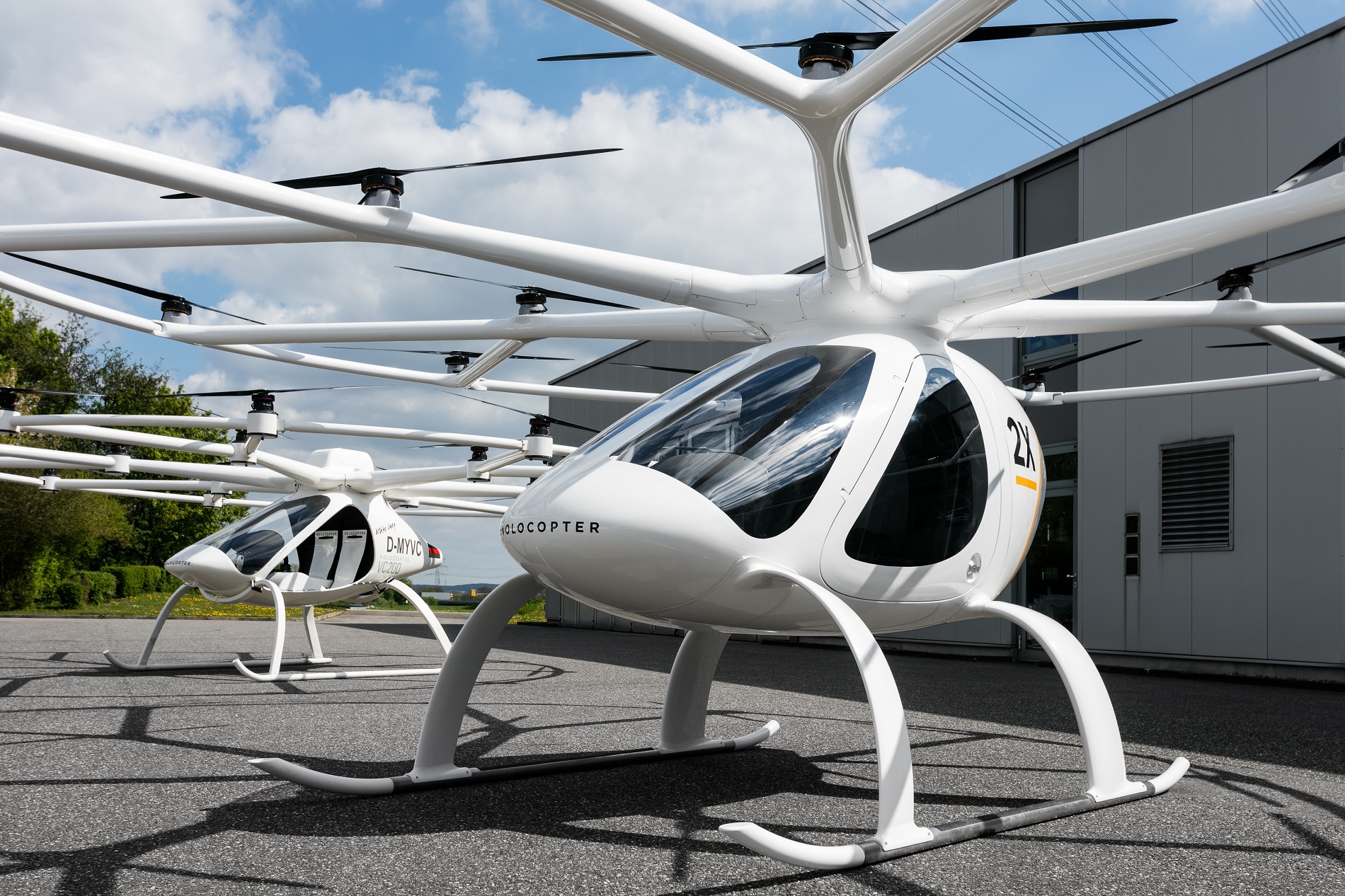

The Volocopter 2X (front) in comparison with Volocopter VC200. (© Nikolay Kazakov for Volocopter)

The results were published in a 132-page report in October (available in German or English at luftrettung.adac.de/volocopter), demonstrating that piloted multicopters could be an asset in providing rapid response. In December 2020, ADAC Luftrettung announced it was reserving two VoloCity eVTOL vehicles for operational testing in 2023.

According to ADAC, its own project team is dealing with the planning and preparation for pilot trials; it will start the testing in two model regions in Germany, though the specific locations haven’t been given. The multicopter operation will then be deployed to more areas in Germany, as there is a demand-oriented use of the system as an emergency doctor transport. As a result of their feasibility study, the assumption is that around 250 multicopters would be needed within Germany for the emergency doctor transport application.

A press spokesperson for ADAC Luftrettung also said, “before [these] trials, we will do several test flights and flight simulations in non-public areas. We need to simulate emergency medical service operations to test the performance of the eVTOL in such conditions. This will take its time until the described pilot trials in 2023, which will then lead into a system rollout planned in 2025.”

There are several technical aspects that need to be addressed when it comes to applying the multicopter to the HEMS mission. The multicopters will be mainly used for trans-vertiport-operation, so there will be a need to extend this operation to be able to land at emergency sites and in confined areas.

Another aspect is the range and speed optimization of the eVTOL and the fast efficient ground handling in the case of an emergency operation, and even flexible flight path planning, are all essential issues that need to be considered and especially where their operation differs to the typical UAM use case. As both Volocopter and the German Aerospace Center (DLR) are on board with this project, they are able to deal with these issues effectively.

Volocopter's cooperation with ADAC Luftrettung began in 2018 when they were approached with the idea to test the use of manned multicopters in emergency medical services — theoretically and in practice. The main question was “How can eVTOL aircraft can be used for medical professional transport?”

6. The non-profit ADAC Luftrettung reserved two VoloCity multicopters in December. Frédéric Bruder (left), ADAC Luftrettung Managing Director, and Florian Reuter, Volocopter CEO, holding the signed contracts. (© Volocopter)

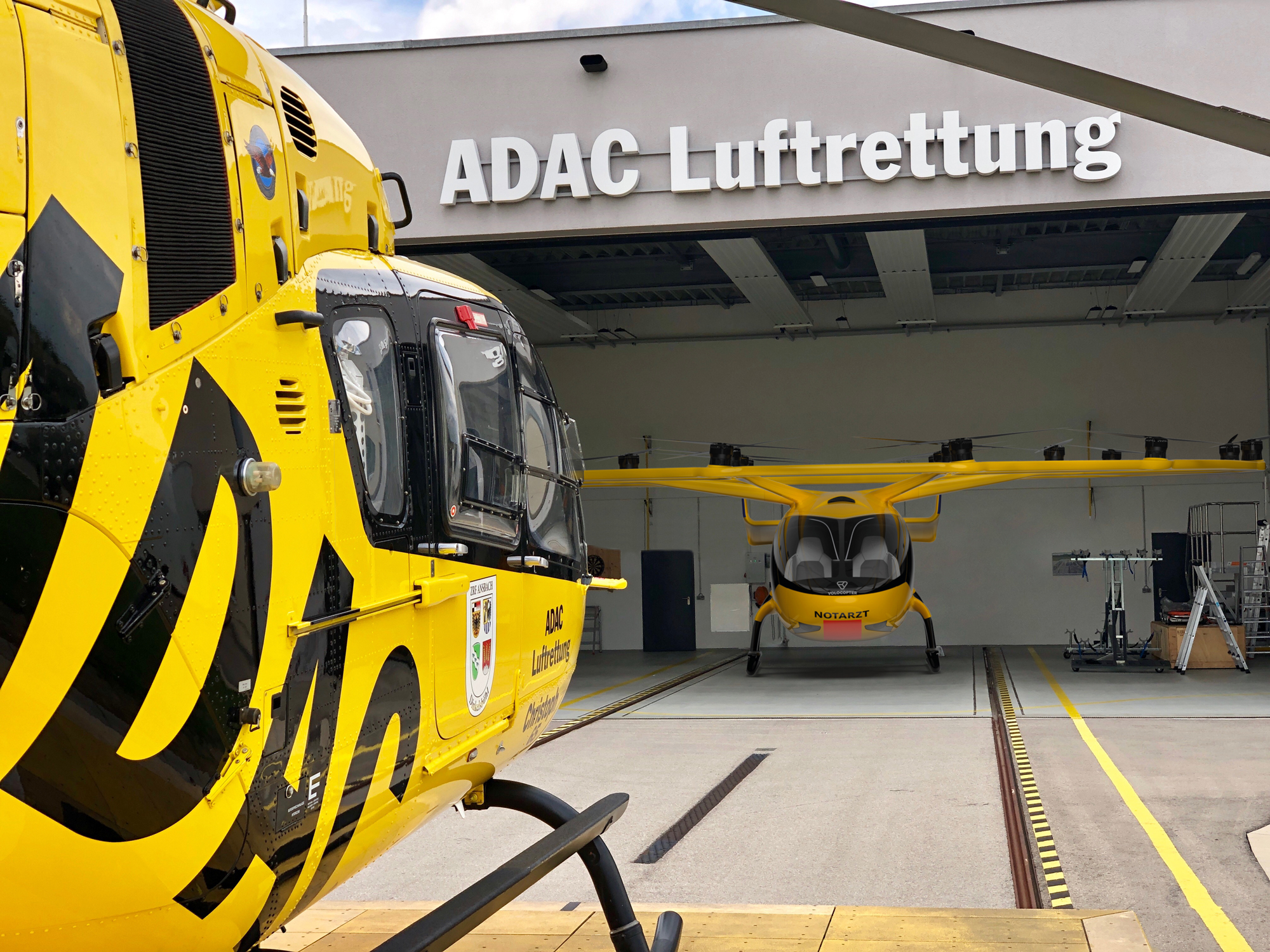

Concept illustration of a Volocopter VoloCity in ADAC colors in a hangar, along with an ADAC H135. (© ADAC)

The 2018 study was on transporting emergency medical personnel and doctors to the patients, not the other way around, which is the conventional use of HEMS. The response times have increased over the last decades due to several factors, so ADAC Luftrettung is looking for ways to reduce response times and thereby save lives. The idea behind it was that bringing doctors to the patients would be a good place to start for improving emergency medical services with eVTOL technology.

Since the VoloCity, like Volocopter’s previous models, is a two-seat eVTOL aircraft, the multicopter would be strictly to transport a doctor — with basic equipment — to the scene as quickly as possible, while an ambulance (or helicopter) was en route for evacuation to a medical facility. The more quickly ADAC can get to their patients, the better they can enhance medical services within the critical “Golden Hour.”

One part of the study investigated the regulatory and legal aspects of using multicopters in air rescue and the conclusion was that any issues or problems that may arise would be easily overcome.

At present, Volocopter is working with EASA towards VoloCity gaining commercial certification for air taxi services and VoloDrone operations. The results of the ADAC study show air rescue with piloted multicopters like Volocopter’s is possible, makes practical and logical sense, and improves emergency care.

The Future is Electric
The eVTOL community, though young, is constantly evolving, and the industry is now turning towards how else to help the community.

The use low-cost, quick reaction UAM, such as what has been shown by the previous Volocopter-ADAC trials and which will no doubt be reinforced by the tests to come, is seen to complement — not replace — the rotorcraft currently in use.

Roads are becoming more congested, increasing the numbers of accidents. But in rural areas, where communities are further apart, there is only so much a traditional HEMS network can cover. Having significantly more aircraft that can more quickly transport medical personnel to the scene of an emergency will undoubtedly save more lives.

The author wishes to express a special thanks to the public affairs departments of ADAC Luftrettung and Volocopter.

About the Author
Ian Frain runs an aviation research consultancy in Cambridge, United Kingdom, called Helian. He has a BSc in engineering studies — aerospace and mechanical — from University of Hertfordshire, and has worked in offshore and parapublic helicopter maintenance, and as a researcher in an aviation publishing company. He can be reached at ian@hel-ian.eu.


Volocopter VoloCity Characteristics

Capacity 2 passengers including hand luggage
Max Weight 1,985 lb     900 kg
Max Payload 440 lb 200 kg
Empty weight 1,545 lb 700 kg
Range 22 miles 35 km
Max Airspeed 69 mph 110 km/h
Height 8.2 ft 2.5 m
Max Overall Width 37.1 ft 11.3 m
Diameter of the propeller rim 30.5 ft 9.3 m
Propeller Diameter 7.55 ft 23 m
Number of Propellers 18
Number of motors 18
Motor Type Brushless DC Electric motor
Power Supply 9 battery packs
Battery Type Lithium-ion
Battery System Exchangeable/rechargeable battery packs
Battery swap time 5 min
